Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock® |
|---|---|---|---|

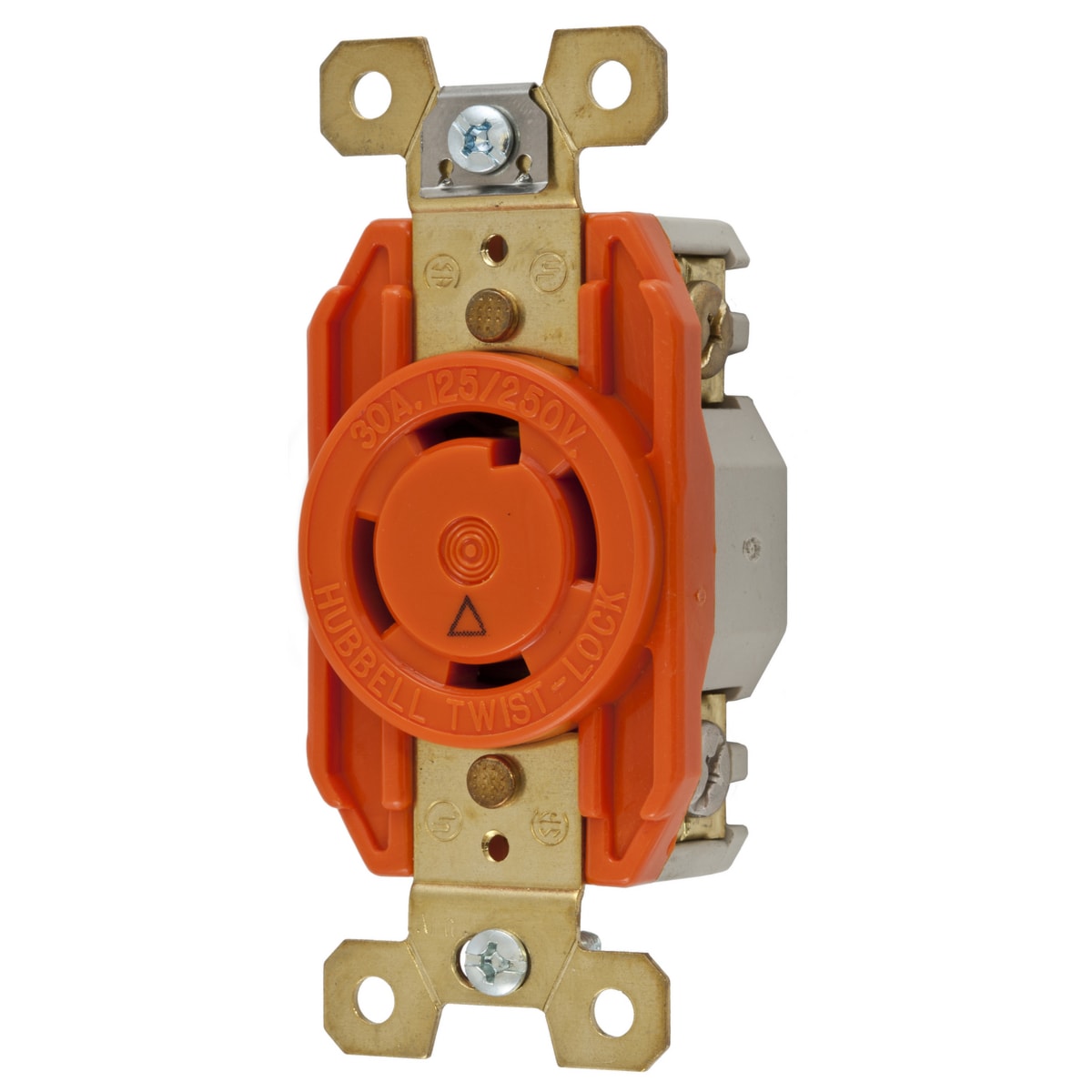

| Item Name | Locking Single Receptacle | Type | Heavy Duty |
| Grade | Industrial | Size | Standard Sized |
| Voltage Rating | 125/250 V | Amperage Rating | 30 A |
| Wattage | 7500 W | Number of Poles | 3 |
| Number of Wires | 4 | NEMA Configuration | L14-30R |
| NEMA Rating | L14-30R | Conductor Size | 12 – 8 AWG |
| Material | Thermoplastic/Composite | Color | Orange |
| Phase | 1 | Terminal Connection | Screw Terminal |
| Dielectric Strength | Withstands 2,000V minimum | Grounding | Isolated |
| Mounting Type | Screw, Recessed/Flush | Environmental Conditions | Indoor Dry Unless Protected by Additional Means |
| Standards | NEMA WD-1 and WD-5, UL 498 | Application | Heavy Duty Industrial |
| UPC | 783585872421 |
